Sealless Magnetic Drive Pumps

Brief of Products

Sealless Magnetic Drive Pumps Manufacturer

Moniba Pumps is a distinguished Sealless Magnetic Drive Pumps Manufacturer in India and Exporter in India.Sealless Magnetic Drive Centrifugal Pumps provide a vast range of operatonal benefits and highly advanced features that that sets them apart than their traditional sealed counterparts. Sealless pumps are well suited to a variety of applications that include industrial processes mainly in the chemical, pharmaceutical and biochemical sectors. They are also required in petrochemical as well as oil and gas industries. We are also a PFA Pump Manufacturer and provide varied types of Leak-Free and Sealless Pumps.

We, being a renowned Sealless Magnetic Drive Pumps Manufacturer in India<, are recommended by most of our clients. Our Customer base has drastically increased as our products are considered as the safest and and the most reliable means for transfer of hazardous and high value liquids. This leads to maximum production output and higher chances of profitability. This has been possible due to the elimination of mechanical seal which removes any chance of leakage.

Our Sealless Magnetic Drive Pumps have greatly benefitted from the introduction of Zeroloss containment shells that has led to reduced power consumption and also Vapourview Monitoring which helps in identification of process upset conditions. Moniba Pumps, a successful Sealless Magnetic Drive Pumps Manufacturer in India, can easily accomodate flow rates up too 1000 m³/hour. These pumps are well suited to low and high temperature aplications, ranging from -80ºC to +450°C, with an approximate system pressures from vacuum to 185 bar.

We use the highest quality raw materials and latest technology in building these pumps which makes our product operational even after being used for decades. Moniba is also capable of providing Sealless Magnetic Drive Pumps of the highest integrity by using secondary containment options. We are considered one of the most eminent Sealless Magnetic Drive Pumps Manufacturer in India as the Sealless Magnetic Drive Pumps we process have extremely high durability and low maintenance cost as there are no seals to be replaced.

Various protection devices are also offered to protect your pump from getting damaged due to any adverse process conditions such as cavitation, dead heading empty suction vessels, etc. Moniba Pumps being one of the leading Sealless Magnetic Drive Pumps Manufacturer in India and also a growing Sealless Magnetic Drive Pumps Exporter in India, we ensure complete inspection of all our products, by making them diagnosed multiple times by our highly qualified inspectors to ensure the best is being delivered to our clients.

  • Moniba Pumps is one of the most astound Sealless Magnetic Drive Pumps Manufacturer in India as the pumps are designed as per ASME B 73.1 Standard to operate from -80 C too + 300 C without the need of any Heating/Cooling Medium.
  • All units are availabe in CLOSE COUPLED or SEPARATE MOUNTED configuration.
  • All liquid ends are interchangeable within the frame size, as are drive components to give optimum match of hydraulic and magnetic performances.
  • Pumps are constructed with single fully traped gasket sealing.

Range

Head M Flow M3/hr Temp. oC Sys. Pressure Bar Mounting Design Std.
From 15-200 From 2-300 -80 to + 300 Up to 150 Close Coupled or Seprate Mounted Asme B 73.1

OR

Head M Flow M3/hr Temp. oC Sys. Pressure Bar Mounting Design Std.
From 32-660 From28-1320 -110 to + 570 Up to 2175 Close Coupled or Seprate Mounted Asme B 73.1

General Construction of a Magnetic Drive Pump

General Construction

Industries & Application

Industries

  • Refineries
  • Chemical
  • Petrochemical industries
  • Power Stations
  • Solar Thermal Fields
  • Refrigeration and Heat Engineering Industries
  • Tank Installations
  • Liquid Gas Plants
  • Pharmaceutical Industries
  • Galvanic Engineering

Application

  • Aggressive, Explosive and Toxic Fluids
  • Cryogenic Liquids
  • Acids & Lyes
  • Hydrocarbons
  • Hazardous Liquids
  • Heat Transfer Liquids
  • Contaminated Liquids
  • Liquid Gases
  • Carcinogenic Liquids
  • Difficult-to-Seal Liquids
  • Valuable Liquids
  • Ultrapure Liquids
  • Corrosive Liquids

Advantages

MONIBA SEALLESS PUMPS ADVANTAGES

Features

  • No Seal, No leakage
  • Continous flow
  • Slient in operation
  • 24 hour running
  • Total eliminating outside contamination. Hence widely used biotech industries.

Range

Moniba Metallic Magnetic pump Performance chart
        Q=m3/hr head =in meter         Q=m3/hr   head =in meter
  2900 RPM hp at full open                 1400 RPM
1 MMPSS 40X25X120 1 Q 8 7 6 5 3 0       4 3 3 3 2 0
      H 5 8 10 11 14 18       1 2 2 3 3 4
      HP 1 1 1 1 1 1       0 0 0 0 0 0
2 MMPSS 40X25X138 1.5 Q 9 8 8 6 5 4 0     4 4 4 3 3 2
      H 14 16 18 20 23 23 26     3 4 4 5 6 6
      HP 1 1 1 1 1 32       0 0 0 0 0 4
3 MMPSS 40X25X142 2 Q 16 15 14 11 8 4 0     8 7 7 6 4 2
      H 8 12 15 20 25 28 30     2 3 4 5 6 7
      HP 2 2 2 1 1 1 1     0 0 0 0 0 0
4 MMPSS 50X40X142 3 Q 29 20 11 7 0         14 10 6 3 0 0
      H 14 15 21 23 25         3 4 5 6 6 0
      HP 2 2 2 2 2 0       0 0 0 0 0 0
5 MMPSS 50X50X114 2 Q 16 15 11 6 3 0       8 7 5 3 2 0
      H 9 10 12 14 15 16       2 2 3 3 4 4
      HP 2 1 1 1 1 1       0 0 0 0 0 0
6 MMPSS 40X25X160 5 Q 25 23 22 20 17 12 11 4 0 13 11 11 10 9 6
      H 16 18 20 22 25 30 31 34 35 4 4 5 5 6 7
      HP 4 4 4 3 3 3 3 2 2 0 0 0 0 0 0
7 MMPSS 40X25X180 7.5 Q 28 26 24 23 20 14 13 6 0 14 13 12 11 10 7
      H 20 23 26 29 33 38 39 43 44 5 6 6 7 8 9
      HP 6 6 5 5 5 4       1 1 1 1 1 1
8 MMPSS 50X40X180 7.5 Q 29 26 23 16 10 3 0     14 13 11 8 5 1
      H 36 40 44 51 55 60 62     9 10 11 13 14 15
      HP 6 5 5 4 4 4       1 1 1 1 0 1
9 MMPSS 50X40X200 10 Q 32 29 25 17 11 3 0     16 14 13 9 6 2
      H 37 42 46 54 58 63 65     9 10 11 13 14 16
      HP 8 7 6 6 5 5       1 1 1 1 1 1
10 MMPSS 50X40X220 12.5 Q 35 32 28 19 12 4 0     17 16 14 9 6 2
      H 41 46 50 58 63 69 71     10 11 12 14 15 17
      HP 10 9 8 7 7 6       1 1 1 1 1 1
11 MMPSS 50X32X180 15 Q 46 41 36 22 6 0       23 20 18 11 3 0
      H 43 45 46 48 52 52       11 11 11 12 13 13
      HP 12 11 10 8 6 5       1 1 1 1 1 1
12 MMPSS 50X32X200 20 Q 51 45 40 25 7 0       25 22 20 12 4 0
      H 53 57 57 60 65 64       13 14 14 15 16 16
      HP 16 14 14 10 8 7       2 2 2 1 1 1

Specifications

This parameters depend on size of pump

Temperature Max 150oc
Solid Size Max 0.2 mm
Sp Gravity Max 1.5
Solid % Max 10%
Viscosity 2000 CP
Suction required flooded can not run dry.

Non self priming

Perforamance

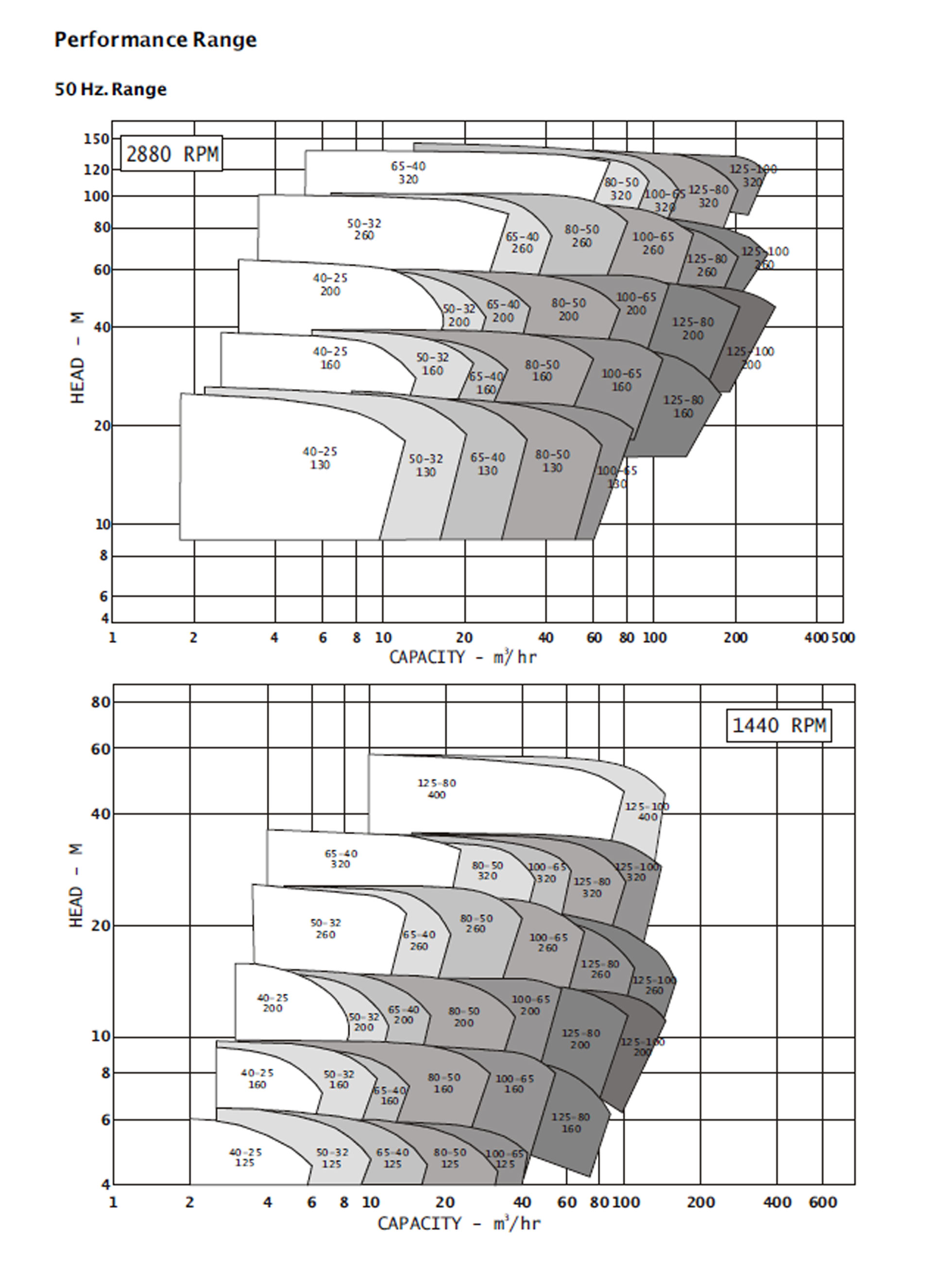

Performance Range

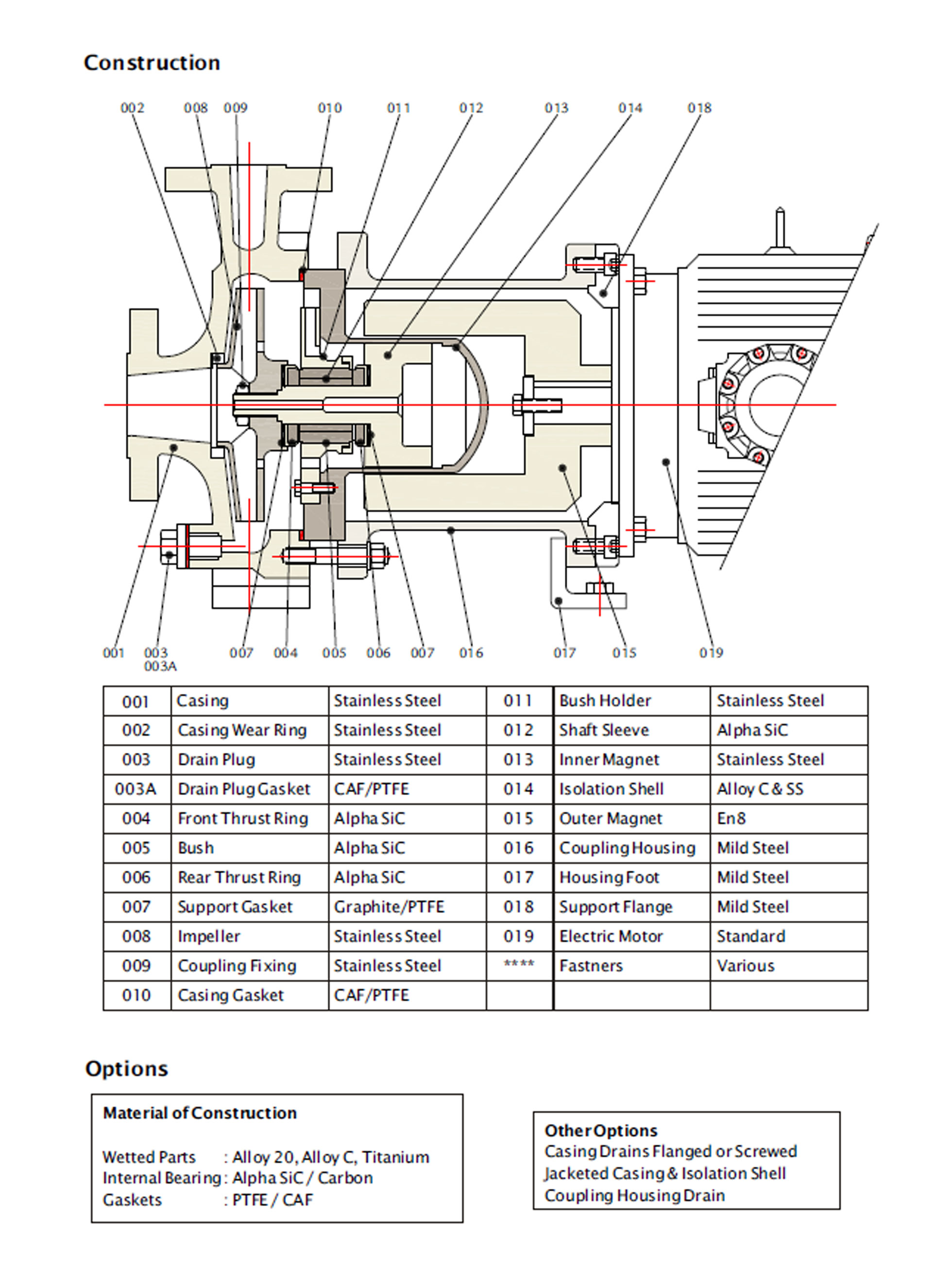

Construction

Magnetic Drive Pump Metallic Selection

Chemical Formula SS
1-Chloronaphthalene C10H7Cl B
1-Nitropropane CH3(CH2)2NO2 A
Acetaldehyde (Ethanal) CH3CHO A
Acetate Solvents CH3COOR A
Acetic Acid _ 20%   A
Acetic Acid _ 30%   A
Acetic Acid _ 50% CH3COOH A
Acetic Acid _ Glacial CH3COOH A
Acetic Anhydride (Acetic Oxide) (CH3CO)2O A
Acetone (Dimethylketone) CH3COCH3 A
Acetone Cyanohydrin (CH3)2C(OH)CN B
Acetonitrile (Methyl Cyanide) CH3CN A
Acetophenone (Phenyl Methyl Ketone)  C6H5COCH3 A
Acetyl Acetone (2,4-Pentanedione) CH3COCH2COCH3 B
Acetyl Chloride CH3COCl B
Acetyl Salicylic Acid (Aspirin)  (CH3OCO) C6H4COOH  B
Acetylene (Ethyne) HC=CH A
Acrolein (Acrylaldehyde) H2C=CHCHO B
Acrylonitrile (Vinyl Cyanide) CH2=CHCN A
Adipic Acid (1,4-Butanedicarboxylic Acid)  HOOC(CH2)4 (COOH ) B
Allyl Alcohol (2-Propen-1-ol) CH2CHCH2OH A
Allyl Chloride (3-Chloropropene) CH2=CHCH2CI B
Alum (Aluminum Potassium Sulfate Dodecahydrate)  KAI(SO4)2  &1&2H2O B
Aluminum Chloride AlCl3 B
Aluminum Hydroxide (Alumina Trihydrate)  AI(OH)3 B
Aluminum Nitrate Al(NO3)3 &9H2O A 10%
Aluminum Potassium Sulfate (Potash Alum)  KAl(SO4)2 A
Aluminum Sulfate (Cake Alum)  Al2(SO4)3 A  50% 167°F
Amines R-NH2 A
Ammonia Anhydrous, Liquid NH3 A
Ammonia Liquors   A
Ammonium Bifluoride _ 10% NH4HF2 B
Ammonium Carbonate (NH4)2CO3 B 70% 212°F
Ammonium Casenite   A
Ammonium Chloride (Sal Ammoniac)  NH4Cl B
Ammonium Fluoride NH4F B
Ammonium Hydroxide (Aqua Ammonia)  NH4OH A 50%
Ammonium Metaphosphate   B
Ammonium Nitrate NH4NO3 A
Ammonium Oxalate (NH4OOC)2 A
Ammonium Persulfate (NH4)2S2O8 A
Ammonium Phosphate, Di-Basic (NH4)2HPO4 A
Ammonium Phosphate, Monobasic (NH4)H2PO4 B
Ammonium Phosphate, Tri-Basic (NH4)3PO4&3H2O B
Ammonium Sulfate (NH4)2SO4 A  80% 212°F
Ammonium Sulfide (NH4)2S B
Ammonium Sulfite (NH4)2SO3H2O B
Ammonium Thiocyanate NH4SCN A 50%
Ammonium Thiosulfate (NH4)2S2O3 A 10%
Amyl (1-Pentanol) C4H9CH2OH A
Amyl Acetate (Banana Oil) CH3CO2C5H11 A
Amyl Alcohol (Pentyl Alcohol) CH3(CH2)4OH A
Amyl Chloride (Chloropentane) CH3(CH2)4CI A
Amyl Phenol C6H4(OH)C5H11 A
Aniline (Aniline Oil) (Amino Benzene)  C6H5NH2 A
Aniline Dyes   B
Animal Fats & Oils   A
Animal Gelatin   A
Anisole (Methylphenyl Ether) C6H5OCH3 B
Anthraquinone C14H8O2 B
Anti-Freeze (Alcohol Base)   A
Anti-Freeze (Glycol Base, Prestone etc)   A
Antimony Pentachloride SbCI5 A
Antimony Trichloride SbCI3 A
Aroclor PCB mixtures A
Aromatic Hydrocarbons C6H5R A
Aromatic Solvents (Benzene etc.)    A
Arsenic Acid AsH3O4 B
Ascorbic Acid C6H8O6 A
Askarel (Pyranol) PCB mixtures A
Asphalt Hydrocarbons A
Asphalt Topping Hydrocarbons A
ASTM _ Ref #1 Oil (High Aniline)  Hydrocarbons A
ASTM _ Ref #2 Oil (Medium Aniline)  Hydrocarbons A
ASTM _ Ref #3 Oil (Low Aniline)   Hydrocarbons A
ASTM _ Ref #4 Oil (High Aniline)  Hydrocarbons A
ASTM _ Ref Motor Fuel A (Aliphatic)  Hydrocarbons A
ASTM _ Ref Motor Fuel B (30% Aromatic)  Hydrocarbons A
ASTM _ Ref Motor Fuel C (50% Aromatic)  Hydrocarbons A
Aviation Gasoline   A
Barbeque Sauce Water, oils, spices A
Barium Carbonate BaCO3 B
Barium Chloride Dihydrate BaCl2 &2H2O B 212°F
Barium Cyanide Ba(CN)2 A
Barium Hydroxide (Barium Hydrate)  Ba(OH)2 A 50% 122°F
Barium Nitrate Ba(NO3)2 A
Barium Sulfate (Blanc Fixe) BaSO4 B
Barium Sulfide BaS B
Beef Extract   A
Beer Water, carbonate A
Beet Sugar Liquors (Sucrose)   A
Benzaldehyde C6H5CHO A
Benzene (Benzol) C6H6 A 167°F
Benzene Sulfonic Acid C6H5SO3H A
Benzoic Acid (Benzene Carboxylic Acid)  C6H5COOH B
Benzol (Benzene) C6H6 A 167°F
Benzoyl Chloride C6H5COCl B
Benzyl (Phenylcarbinol) C6H5CH2OH A
Benzyl Acetate CH3COZ  CH2C6H5 A
Benzyl Alcohol C6H5CH2OH A
Benzyl Benzoate C6H5CO2CH2C6H5 B
Benzyl Chloride (Chlorotoluene) C6H5CH2Cl B
Benzyl Dichloride (Benzal Chloride) C6H5CHCl2 A
Bismuth Subcarbonate (Bismuth Carbonate)  (BiO)2CO3 B 10%
Black Sulfate Liquor   A
Bleach Solutions Water, chlorine, oxygen B
Borax (Sodium Borate) B4Na2O7 A
Bordeaux Mixture Copper sulfate salts A
Boric Acid (Boracic Acid) H3BO3 A 30%
Brake Fluid (Non-Petroleum Base)  Silicones or glycols  A
Brewery Slop   A
Brine (Sodium Chloride) Salt water A
Bromine Trifluoride BrF3 B
Bromobenzene C6H5Br A
Bromochloromethane BrCH2Cl B
Bromotoluene C6H4BrCH3 A
Bronzing Liquid   A
Bunker Oil (Fuel) #5, #6 & C Hydrocarbons A
Butadiene C4H6 A
Butane (LPG) (Butyl Hydride) C4H10 A
Butter Fats A
Buttermilk Fats, water A
Butyl (Butanol) C3H7CH2OH A
Butyl Acetate CH3CO2(CH2)3CH3 A
Butyl Acetyl Ricinoleate C24H44O5 A
Butyl Acrylate CH2CHCO2C4H9 A
Butyl Alcohol (Butanol) CH3(CH2)3OH A
Butyl Amine (Aminobutane) CH3(CH2)2CH2NH2 A
Butyl Benzoate C6H5COO(CH2)3CH3 A
Butyl Bromide CH3(CH2)2CH2Br A
Butyl Butyrate CH3(CH2)2  CH2CO2C4H9 A
Butyl Chloride (Chlorobutane) CH3(CH2)3CL B
Butyl Ether (Dibutyl Ether) (CH3(CH2)3)2O A
Butyl Stearate CH3(CH2)16   CO2(CH2)3CH3 B
Butylene (Butene) C4H8 A
Butyraldehyde CH3(CH2)2CHO A
Butyric Acid CH3(CH2)2CO2H B
Butyric Anhydride (CH3CH2CH2CO)2O A
Calcium Acetate Hydrate Ca(CH3COO)2  H2O B
Calcium Bisulfite Ca(HSO3)2 A  90%
Calcium Carbonate (Chalk) CaCO3 B
Calcium Chlorate Ca(ClO3)2 B 30%
Calcium Chloride (Brine) CaCl2 &6H2O A
Calcium Hydroxide (Slaked Lime) Ca(OH)2 B 50%
Calcium Hypochlorite 20% (Calcium Oxichloride)  Ca(CIO)2 B
Calcium Nitrate Ca(NO3)2 B 40%  212°F
Calcium Oxide (Unslaked Lime) CaO A
Calcium Silicate Ca2SiO4 B
Calcium Sulfate (Gypsum) CaSO4 A 10%
Calcium Sulfide CaS B
Calcium Sulfite CaSO3&2H2O A 10%
Calgon (NaPO3)6 A
Cane Juice Sucrose, water A
Cane Sugar Liquors Sucrose, water A
Capryl Alcohol (Octanol) CH3(CH2)6CH2OH A
Caprylic Acid (Octanoic Acid) CH3(CH2)6  COOH A
Carbitol CH3CH2OCH2CH2OCH2CH2OH A
Carbolic Acid (see Phenol) C6H5OH B
Carbon Dioxide (Carbonic Acid Gas) CO2 A
Carbon Disulfide (Carbon Bisulfide)  CS2 A 90%
Carbon Monoxide CO A
Carbon Tetrachloride (Tetrachloromethane)  CCL4 B
Carbonated Beverages CO2/H2O A
Carbonic Acid (liquid) H2CO3 B
Casein a phosphoprotein B
Castor Oil A mixture of fatty acids A
Catsup (Ketchup)   A
Cellosolve (Glycol Ethers) HOCH2CH2OR A
Cellulose Acetate C8H12O5 A
Cellulube Hydraulic Fluids (Phosphate Esters)    A
Chlorinated Lime _ 35% Bleach CA(CIO)2 A
Chlorinated Water   B
Chlorine Trifluoride CIF3 A
Chlorine, Wet CI2/H2O A
Chloroacetone (Monochloroacetone)  CICH2cOCH3 B
Chlorobenzene (Monochlorobenzene)  C6H5CI B
Chlorobromomethane CICH2Br B
Chlorobutadiene (Chloroprene)  C4H5CL B
Chloroform CHCI3 A
Chlorosulfonic Acid HSO3CL B
Chlorothene (Chlorinated Solvents)  CH3CCL3 A
Chlorotrifluoroethylene C2H2CIF3 B
Chocolate syrup Corn syrup, water, sugar A
Cider (Apple Juice) Sucrose, water A
Cinnamon Oil Cinnamic acid esters A
Citric Acid C6H8O7 H2O A 30%
Citric Oils Citric acid esters A
Citrus Pectin Liquor   A
Clorox   A
Clove Oil (Eugenol) C10H12O2 A
Coconut Oil (Coconut Butter) Fatty acid mixture A
Cod Liver Oil (Fish Oil) Glycerides, acids, esters A
Coffee Fatty oils, acids, ellulose, water A
Copper Acetate Cu(c2H3O2)2  CuO  &6H2O B 10%
Copper Cyanide CuCN A 10%
Copper Nitrate Hexahydrate Cu(NO3)2&6H2O A
Copper Sulfate (Blue Copperas) CuSO4&5H2O A 10%
Corn Oil (Maize oil) Glycerides of fatty acids B
Cotton Seed Oil   A
Cream   A
Creosote, Coal-Tar (Tar Oil) Hydrocarbon mixture B
Creosote, Wood-Tar Phenol mixture B
Cresylic Acid (Cresol) C8H10O2 A
Crotonaldehyde CH3CHCHCHO A
Cumeme (Isopropylbenzene) C6H5CH(CH3)2 B
Cutting Oil (Sulfur Base)   A
Cutting Oil (Water Soluble)   A
Cyclohexane C6H12 B
Cyclohexanol C6H11OH A
Cyclohexanone C6H10O B
Cyclopentane C5H10 B
Denatured Alcohol Ethanol and denaturant A
Detergent Solutions   A
Developing Fluids & Solutions   A
Dextrose C6H12O6 A
Diacetone (Tyranton) (CH3)2C(OH) CH2COCH3  A
Diacetone Alcohol (Diacetone)  (CH3)2COHCH2 COCH3  A
Dibenzyl Ether (C6H5CH2)2O B
Dibutyl Amine (C4H9)2NH A
Dibutyl Phthalate (DBP) C6H4(CO2C4H9)2 A
Dibutyl Sebecate (DBS) C18H34O4 A
Dichlorobutane C4H8CI2 B
Diesel Oil (Fuel ASTM #2) Hydrocarbons A
Diester Synthetic Oils   A
Diethanol Amine (HOCH2CH2)2NH A
Diethyl Amine (CH3CH2)2NH A
Diethyl Ether (Ether) (CH3CH2)2O A
Diethyl Phthalate (DEP) C6H4(CO2C2H5)2 A
Diethyl Sebecate C14H26O4 A
Diethylene Ether (Dioxane) C4H8O2 A
Diethylene Glycol (DEG) HOCH2CH2OCH2CH2OH A
Diethylene Triamine (NH2C2H4)2NH A
Diisobutyl Ketone C4H9COC4H9 A
Diisooctyl Adipate (DIOA) C22H42O4 A
Diisopropyl Ketone [(CH3)2CH]2CO A
Dimethyl Ether CH3OCH3 B
Dimethyl Sulfide (CH3)2S A
Dinitrotoluene (DNT) CH3C6H3(NO2)2 A
Dioctyl Phthalate (DOP) C24H38O4 A
Dioctyl Sebecate C26H50O4 A
Dipentene (Limonene) C10H16 A
Diphenyl Oxides (Phenyl Ether)  C6H5OC6H5 A
Dispersing Oil #10   A
Dodecyl Benzene (Alkane) C6H5(CH2)11CH3 A
Dowtherm (Biphenyl & Phenyl Ether)  (C6H5)2 and (C6H5)2O  A
Drycleaning Fluids Chlorinated hydrocarbons A
Dyes   A
Epichlorohydrin C3H5CIO A
Epsom Salts  (Magnesium Sulfate) MgSO4  &7H2O A
Ethane C2H6 A
Ethanolamine (Aminoethanol)  H2NCH2 CH2OH  A
Ethyl (Ethanol) CH3CH2OH A
Ethyl Acetate CH3COOC  H2CH3 A
Ethyl Acetoacetate (Acetoacetic Ester)  CH3COCH2 COOCH2CH3  A
Ethyl Acrylate CH2CHCO2CH2CH3 A
Ethyl Alcohol (Ethanol) CH3CH2OH A
Ethyl Amine (Monoethylamine)  CH3CH2NH2 A
Ethyl Benzene CH3CH2C6H5 B
Ethyl Benzoate C6H5CO2CH2CH3 A
Ethyl Bromide (Bromoethane)  CH3CH2Br A
Ethyl Butyrate CH3CH2CH2 CO2C2H5 A
Ethyl Cellulose (Ethocel)   B
Ethyl Chloride  (Chloroethane) C2H5CI A
Ethyl Formate HCOOCH2 CH3 B
Ethyl Mercaptan (Ethanethiol)  CH3CH2SH B
Ethyl Propionate CH3CH2  COOCH2CH3 A
Ethyl Silicate Si(OCH2CH3)4 A
Ethylene (Ethene) C2H4 A
Ethylene Chlorohydrin CICH2CH2OH A
Ethylene Diamine (CH2)2(NH2)2 A
Ethylene Dibromide (Ethylene Bromide)  Br(CH2)2Br B
Ethylene Dichloride (Dutch Oil)  CI(CH2)2CI B
Ethylene Glycol (Ethylene Alcohol, Glycol)  (CH2OH)2 A
Ethylene Glycol Monobutyl Ether (Butyl Cellosolve) C4H9OCH2CH2OH A
Ethylene Glycol Monoethyl, Ether Acetate (Cellosol C2H5O(CH2)2  O2CCH3 A
Ethylene Glycol Monomethyl, Ether (Methyl Cellosol CH3O(CH2)2OH A
Ethylene Oxide (CH2)2O A
Ethylene Trichloride (Trichloroethene)  CICHCCI2 A
Ethylhexyl Alcohol (Ethylhexanol)  C8H17OH A
Ethylidene Chloride CH3CHCI2 A
Fatty Acids CnH2n+1COOH A
Ferric Hydroxide FeHO2 A
Ferric Nitrate Fe(NO3)3 B
Ferric Sulfate Fe2(SO4)3 B
Ferrous Chloride FeCI2 B 30%
Ferrous Sulfate FeSO4 B
Fluoboric Acid HBF4 A 30%
Fluorine (Liquid) F2 A
Fluorolube (Fluorocarbon Oils)  FxCyHz A
Fluosilicic Acid (Sand Acid) H2SiF6 A 212°F
Formaldehyde (Formalin) HCHO A 90%
Formamide HCONH2 B
Freon 11 (Trichlorofluoromethane) CCI3F A
Freon 113 (Trichlorotrifluoroethane) (TF) CI3CCF3 A
Freon 114 (Dichlorotetrafluoroethane) C2CI2F4 A
Freon 12 (Dichlorodifluoromethane) CI2CF2 A
Freon 13 (Chlorotrifluoromethane) CICF3 A
  HCCIF2 A
Fruit Juices Water, sucrose A
Fuel Oils (ASTM #1 thru #9) Hydrocarbons A
Furfural (Ant Oil) C5H4O2 A 20%
Furfuryl Alcohol C5H6O2 A
Gallic Acid C6H(OH)3 COOH B
Gasoline (Petrol) Hydrocarbons A
Gasoline (Unleaded) C4 TO C12 hydrocarbons A
Gelatin Water soluble proteins A
Ginger Oil C17H26O4 A
Gluconic Acid C6H12O7 A  50%
Glucose (Corn Syrup) C6H12O6 A
Glue   B
Glycerol (Glycerine) C3H8O3 A
Glycols   B
Grape Juice Water, sucrose A
Grapefruit Oil   A
Grease Hydrocarbons A
Green Sulfate Liquor   A
Heptanal CH3(CH2)5CHO A
Heptane C7H16 A
Hexanal CH3(CH2)4CHO A
Hexyl (1-Hexanol) C5H11CH2OH A
Hexyl Alcohol (1-Hexanol) C6H13OH A
Hexylene Glycol (Brake fluid) C6H12OH A
Honey   A
Hydraulic Oil (Petroleum base) Hydrocarbons A
Hydrazine (Diamine) H2NNH2 A
Hydrobromic Acid HBr A
Hydrocyanic Acid (Formonitrile) HCN A
Hydrogen Peroxide _ 10% H2O2 A
Hydrogen Peroxide _ 30% H2O2 B
Hydrogen Peroxide _ 90% H2O2 A
Hydrogen Sulfide (Wet) H2S A 167°F
Hydroquinone C6H4(OH)2 A 10%
Hydroxyacetic Acid _ 10% HOCH2COOH B
Ink   A
Iodoform CHI3 A
Isoamyl Acetate CH3CO2CH2CH2CH(CH3)2 A
Isoamyl Butyrate C9H18O2 A
Isobutyl (2-Methyl-1-Propanol) C3H7CH2OH A
Isobutyl Acetate CH3CO2CH2 CH(CH3)2 A
Isobutyl Chloride (CH3)2 CHCH2CI B
Isododecane (CH3)2 CH(CH2)8CH3 B
Isooctane (Trimethylpentane)  C8H18 A
Isophorone C9H14O A
Isopropyl (2-Propanol) H3CCH(OH)CH3 A
Isopropyl Acetate CH3COOCH(CH3)2 A
Isopropyl Alcohol (Isopropanol)  CH3CH(OH)CH3 A
Isopropyl Amine C3H7NH2 A
Isopropyl Chloride (CH3)2CHCI A
Isopropyl Ether (CH3)2CHOCH(CH3)2 A
Jet Fuels (JP1 to JP6) (ASTM-A, A1 & B)    A
Kerosine (Kerosene) Hydrocarbons A
Lacquer Solvents   A
Lacquers   A
Lactic Acid CH3CHOHCOOH A 70%
Lactol (Aliphatic Naptha Solvent)  CH3CHOH CO2C10H7  A
Lard (Lard Oil) Olein, stearin B
Latex Rubber emulsion A
Lauryl Alcohol (n-Dodecanol)  CH3(CH2)10  CH2OH  A
Lead Acetate (Sugar of Lead)  Pb(CH3CO2)2 B
Lead Chloride PbCI2 B
Lead Nitrate Pb(NO3)2 B
Lemon Oil (Cedro Oil) Hydrocarbons A
Lignin Liquor Blend of nautal aromatic oils A
Ligroin (Ligroine) (Benzine) Petroleum fraction A
Lime Slurries   B
Lime Sulfur CaS+CaSO4 A
Linoleic Acid C18H32O2 A
Linseed Oil (Flaxseed Oil)  Glycerides A
Lubricating Oils (Petroleum)  Hydrocarbons A
Lye (Potassium Hydroxide) KOH A
Magnesium Carbonate MgCO3 B
Magnesium Chloride MgCI2O B 40%
Magnesium Hydroxide (Milk of Magnesia)  Mg(OH)2 A
Magnesium Nitrate Mg(NO3)2 &6H2O A
Magnesium Oxide MgO A
Magnesium Sulfate (Epsom Salts)  MgSO4&7H2O A 40%
Maleic Acid (CHCOOH)2 B
Maleic Anhydride C4H2O3 A
Malic Acid (Apple Acid) C4H6O5 A
Maple Sugar Liquors (Sucrose)  Water, sucrose A
Mayonnaise Water, fats, oils A
Mercuric Cyanide Hg(CN)2 B
Mercurous Nitrate Hg(NO3)2 &2H2O B  212°F
Mercury Hg A
Mesityl Oxide (CH3)2C = CHCOCH3 A
Methane CH4 A
Methyl (Methanol) CH3OH A
Methyl Acetate CH3CO2CH3 A
Methyl Acetoacetate CH3COCH2 COOCH3 A
Methyl Acrylate CH2CHCO2CH3 A
Methyl Alcohol (Methanol) CH3OH A
Methyl Amine (Monomethylamine)  CH3NH2 A
Methyl Amyl Acetate C8H16O2 A
Methyl Amyl Alcohol C6H13OH A
Methyl Bromide (Bromo Methane)  CH3Br A
Methyl Butyl Ketone (2-hexanone)  CH3COC4H9 A
Methyl Butyrate CH3(CH2)2 CO2CH3 A
Methyl Chloride CH3CI A
Methyl Cyclopentane C6H12 A
Methyl Ethyl Ketone (Butanone)  CH3COCH2CH3 A
Methyl Formate HCOOCH3 A
Methyl Iodide CH3I A
Methyl Isobutyl Ketone (Hexone)  CH3COCH2CH (CH3)2  B
Methyl Isopropyl Ketone CH3COCH(CH3)2 A
Methyl Methacrylate CH2C(CH3)CO2CH3 A
Methylamine CH3NH2 A
Methylene Bromide CH2Br2 A
Methylene Chloride CH2CI2 A 90%
Milk   A
Mine Water   B
Mineral Oil (Petroleum) Hydrocarbons A
Mixed Acids (Sulfuric & Nitric)  H2SO4, HNO3 B
Molasses   A
Monochlorobenzene C6H5CI A
Monoethanolamine NH2C2H4OH A
Mustard   A
N,N-Dimethyl Formamide (DMF) HCON(CH3)2 A
Naphtha (Petroleum Spirits) (Thinner)  Petroleum fractions  A
Naphtha Coal Tar (Benzol) Hydrocarbons A
Naphthalene (Tar Camphor) C10H8 A
Naphthoic Acid C11H8O2 A
n-Butyl Acetate CH3CO2(CH2)3CH3 A
Neatsfoot Oil   A
Neosol   A
n-Hexane C6H14 A
Nickel Acetate Ni(CH3CO2)2 A
Nickel Chloride NiCI2 B
Nickel Nitrate Ni(NO3)2&6H2O A
Nickel Sulfate NiSO4 A  40%
Nitrana (Ammonia Fertilizer)   A
Nitric Acid (Conc.) HNO3 A
Nitric Acid (Red Fuming)   A
Nitric Acid _ 10% HNO3 A
Nitric Acid _ 25% HNO3 A 30%
Nitric Acid _ 35% HNO3 A 40%
Nitric Acid _ 50% HNO3 A
Nitric Acid _ 70% HNO3 A
Nitrobenzene C6H5NO2 A
Nitroethane C2H5NO2 A
Nitrogen Tetroxide N2O4 A
Nitromethane CH3NO2 A
n-Propyl Acetate CH3COO(CH2)2CH3 A
o-Chlorophenol C6H5CIO B
Octyl (Caprylic Alcohol) C7H15 CH2OH  A
Octyl Acetate CH3COO(CH3)7CH3 A
o-Dichlorobenzene C6H4CI2 B
Oleic Acid (Red Oil) C18H34O2 B
Oleum (Fuming Sulfuric Acid) H2SO4/SO3 A
Olive Oil Mixed glycerides of acids A
Oxalic Acid (COOH)2 B 90%
Ozone O3 A
Paint Thinner, DUCO Hydrocarbons A
Paints & Solvents   A
Palm Oil Mixture of terpenes A
Palmitic Acid CH3(CH2)14  COOH A
Paraffins (Paraffin Oil) Hydrocarbons A
Paraformaldehyde (CH2O)n A
Paraldehyde C6H12O3 A
Peanut Oil Glycerides of fatty acids A
Pentachloroethane (Pentalin)  CI2 CHCCI3  A
Pentachlorophenol (PCP) C6CI5OH A
Pentane (Amyl Hydride) C5H12 B
Peppermint Oil   A
Perchloric Acid HCIO4 B
Perchloroethylene (Tetrachloroethylene)  C2CI4 A 90%
Petroleum (Crude Oil) (Sour)  Hydrocarbons A
Phenethyl Alcohol (Benzyl Carbinol)  C6H5(CH2)2OH A
Phenol (Carbolic Acid) C6H5OH B
Phenyl Sulfonic Acid C6H4(OH)SO3H B
Phosphoric Acid (Conc.) H3PO4 A  212°F
Phosphoric Acid _ 10% H3PO4 A
Phosphoric Acid _ 20% H3PO4 A  212°F
Phosphoric Acid _ 50% H3PO4 A
Phosphorus Oxychloride POCI3 B
Phosphorus Trichloride PCI3 A
Photographic Developer   A
Picric Acid (Carbazotic Acid) (NO2)3 C6H2OH A
Pine Oil (Yarmor) Cyclic terpene alcohols A
Plating Solution _ Cadmium   A
Plating Solution _ Others   A
Potassium Acetate CH3CO2K B
Potassium Bicarbonate KHCO3 A  30%
Potassium Bisulfate KHSO4 A 10%
Potassium Bisulfite KHSO3 B 105
Potassium Bromide KBr B  90%  212°F
Potassium Carbonate (Potash) K2CO3 B
Potassium Chlorate KCIO3 A  60%]
Potassium Chloride KCI A
Potassium Chromate K2CrO4 A
Potassium Cyanide KCN B 90% 212°F
Potassium Dichromate K2Cr2O7 A
Potassium Hydroxide (Caustic Potash) (Lye)  KOH A
Potassium Iodide KI B
Potassium Nitrate (Saltpeter)  KNO3 B 80% 212°F
Potassium Nitrite KNO2 B
Potassium Permanganate (Purple Salt)  KMnO4 B 30% 212°
Potassium Phosphate KH2PO4 B 30%
Potassium Silicate K2Si2O5 B
Potassium Sulfate K2SO4 A
Potassium Sulfide K2S B
Potassium Sulfite K2SO32H2O B  50%
Propane (LPG) C3H8 A
Propionaldehyde (Propanal) C2H5CHO A
Propionic Acid (Methylacetic Acid)  CH3CH2CO2H B
Propyl (Propanol) C2H5CH2OH A
Propyl Alcohol (1-Propanol) CH3CH2CH2OH A
Propylene C3H6 A
Propylene Dichloride CH3CH(CI)CH2CI A
Propylene Glycol (Methyl Glycol)  C3H6(OH)2 A
Propylene Oxide C3H6O A
Pydraul (Phosphate Eser Base Fluid)    A
Pyridine N(CH)4CH A
Pyroligneous Acid (Wood Vinegar)   A  10%
Quaternary Ammonium Salts NH4 (X) A
Quench Oil   A
Rape-Seed Oil (Colza Oil)   A
Rose Oil Geraniol, citronellol A
Rosin C20H30O2 A
Rubber Latex Emulsions (C5H8)n/H2O A
Rubber Solvents (Petroleum Distillate)  Hydrocarbons A
Rum (Alcoholic liquor from molasses )   A
Rust Inhibitors   A
Sal Ammoniac (Ammonium Chloride)  NH4CI B
Sal Soda (Sodium Carbonate) NaCO3 A
Salad Dressing Fats, oils, water A
Salicylic Acid   B
Salt Water (Brine) NaCl/H2O A
Sea Water (Brine)    A
Sesame Seed Oil Olein, stearin, palmitin A
Sewage   A
Silicone Oils (Versilube etc.)  [(CH3)2SiO2)]n A
Silver Cyanide AgCN A
Silver Nitrate AgNO3 A  60%
Skydrol Hydraulic Fluid (Phosphate Ester Base)    A
Soap Solutions Salt of fatty acid in H2O A
Soda Ash (Sodium Carbonate)  Na2CO3 A
Sodium Acetate CH3COONa A
Sodium Aluminate Na2Al2O4 A  40%
Sodium Bicarbonate (Baking Soda)  NaHCO3 A 20%
Sodium Bisulfite (Cream of Tartar)  NaHSO3 A 50%
Sodium Bisulfite (Niter Cake)  NaHSO4 B 50%
Sodium Borate Na2B4O7 A
Sodium Bromide NaBr B 30%
Sodium Chlorate NaCIO3 B
Sodium Chloride (Table Salt)  NaCI A
Sodium Chromate Na2CrO4 A  60%
Sodium Cyanide NaCN A
Sodium Hexametaphosphate (Calgon)  (NaPO3)6 B
Sodium Hydroxide (Caustic Soda) (Lye)  NaOH B  50%
Sodium Metasilicate Na2SiO3 A
Sodium Nitrate (Chile Saltpeter)  NaNO3 A  90%
Sodium Nitrite NaNO2 A
Sodium Perborate NaBO3 A
Sodium Peroxide (Sodium Dioxide)  Na2O2 B  10%
Sodium Phosphate (Tribasic) (TSP)  Na3PO4 B
Sodium Silicates (Water Glass)  Na2O SiO2 A
Sodium Sulfate (Salt Cake) (Thenardite)  Na2SO4 A
Sodium Sulfide (Pentahydrate)  Na2S &5H2O A 30% 167°F
Sodium Sulfite Na2SO3 A  30%
Sodium Tetraborate Na2B4O7 &1&0H2O A
Sodium Thiosulfate (Antichlor)  Na2S2O3 A 122°F
Sorghum   A
Soy Sauce Fermented soya bean/wheat A
Soybean Oil Triclycerides of acids A
Sperm Oil (Whale Oil) Fatty acid esters A
Stannic Chloride (Tin Chloride) SnCI4 A 10%
Stannous Chloride (Tin Chloride)  SnCI2 A  10%
Starch C6H10O5 A
Stearic Acid CH3(CH2)16CO2H A
Stoddard Solvent Petroleum distillate A
Styrene (Vinylbenzene) C6H5CHCH2 A
Sucrose Solution (Sugar)  C12H22O11/H2O A
Sulfur S A
Sulfur Chloride S2CI2 B
Sulfur Dioxide SO2 A 10%
Sulfur Trioxide SO3 B
Sulfuric Acid (Conc.) H2SO4 B
Sulfuric Acid (Fuming) H2SO4 B
Sulfuric Acid 10% H2SO4 A
Sulfuric Acid 25% H2SO4 B
Sulfuric Acid 95% H2SO4 A
Sulfurous Acid H2SO3 B
Tall Oil (Liquid Rosin) Rosin acids B
Tallow Fat from cattle, sheep A
Tannic Acid C76H52O46 A
Tanning Liquors Tannic acid A
Tar, Bituminous (Coal tar, pitch) Mixture of aromatic & phenolic hydrocarbons A
Tartaric Acid C4H6O6 A
Terpineol (Terpilenol) C10H18O A
Tertiary Butyl Catechol C9H14O2 B
Tetraethyl Lead Pb(C2H5)4 A
Tetrahydronaphthalene (Tetralin)  C10H12 A
Thionyl Chloride SOCI2 A
Titanium Tetrachloride TiCI4 B
Toluene (Toluol) C7H8 A
Toluidine CH3C6H4NH2 A
Tomato Pulp & Juice   A
Toothpaste   A
Transformer Oil (Petroleum) Hydrocarbons A
Transmission Fluid (Type A)   A
Tributyl Phosphate (TBP) (C4H9)3PO4 A
Trichlorobenzenes C6H3CI3 A
Trichloroethane C2H3CI3 A
Trichloroethylene (Ex-Tri) (Hi-Tri) C2HCI3 A 90% 167°F
Trichloropropane CH2CICHCICH2CI A
Tricresyl Phosphate (Lindol) (TCP) (CH3C6H4O)3 PO  B
Triethanol Amine (TEA) N(C2H4OH)3 A
Triethyl Amine (CH3CH2)3N A
Trimethylene Glycol HO(CH2)3OH A
Tung Oil (Wood Oil) Fatty acids A
Turpentine C10H16 A
Urea (Carbamide) CO(NH2)2 B 50%
Urine   A
Vanilla Extract (Vanillin) C6H3(CHO)(OCH3)(OH) A
Varnish (Oil, gum resins, oil of turpentine)   A
Vegetable Juices   A
Vegetable Oils   A
Vinegar Dilute acetic acid A
Vinyl Acetate CH3COOCHCH2 A
Vinyl Chloride (Chloroethylene)  CH2CHCI A
Water, Distilled (Also Deionized) H2O A
Water, Fresh H2O A
Waxes Hydrocarbons A
Weed Killers   A
Whiskey Ethanol, esters, acids A
White Oil (Mineral, petroleum) Mix of liquid hydrocarbons A
White Sulfate Liquor   A
Wines   A
Wort, Distillery Sugar solution from malt A
Xylene (Xylol) C6H4(CH3)2 B
Zeolite (Hydrated alkali aluminum silicates)   A
Zinc Carbonate ZnCO3 B
Zinc Chloride ZnCI2 A  10%
Zinc Hydrosulfite ZnHSO3 A
Zinc Sulfate ZnSO4 B

THIS CHART IS FOR REFERENCE. WE ARE NOT RESPONISIBLE FOR ANY MISUSE OF THIS CHART.

Accessories

  • Magnetic Strainer
  • Base Frame
  • Coupling
  • Coupling Guard
