PFA Pumps Manufacturers

PFA Pumps Manufacturer

We are one of the highly recognised PFA Pumps Manufacturers in India and Exporter in India.

Moniba Pumps uses a hi-tech lining process, free from adhesive bonding. This eliminates peeling off of the lining from the metal body, different form other lined products. Rigorous quality checks through out the lining process ensures years of trouble. free operation. These pumps are available in a variety of lining materials to withstand severe corrosion and temperature conditions.

Moniba, being the one of the leading and most recommended PFA Pumps Manufacturers in India, has to maintain the quality measures of all the Pumps manufactured by them. The quality of the Motor pumps outstanding as their lack of wear parts minimizes the chances of maintainance to the least. We are a superior PFA Lined Pumps Manufacturer in India consume comparitively less power. They are available in many kinds of variants can be provided to the clients as per their specifications. The recent trend in the plant engineering is highly focused on world scale plants.

Moniba Pumps is an magnificent and distinguished industrial unit for being the most recognized firm and its low-upkeep PFA Pumps is perceived on a worldwide level. Dependability and wellbeing are the most huge parts that prompt successful tasks at Moniba and we flourish with these standards to convey the best outcomes to our customers. The PFA Pump is analyzed legitimately by highly qualified Inspection Officers to give the customers the best, all things considered.

Moniba Pumps has been a benchmark in the country when it comes to manufacturing and supplying best quality of PFA Pumps. We have thus, been a succesful PFA Pump Exporter in Indiain the industry. Supplying the best quality of PFA Lined Pumps is our motto and we head to strive and spread our word in the entire globe.

Features:

Moniba is considered the best PFA Pumps Manufacturers in India in the category. The hi-tech lining process involves high prssure moulding at high temperature to ensure uniform thickness of lining free from cavaties, air pockets, cold flows etc. A unique feature is the dove-tail grooves provided on the metal casing and backplate. This ensures a firm grip between the metal and lining material. A dynamically balanced, solid moulded, semi-open impeller with metallic insert gives mechanical strength and durability.

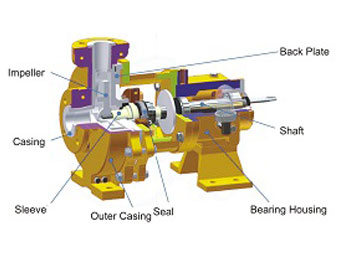

  • Material of Construction - The PPK Series lined pumps are made available in materials like - LINING : PFA, FEP, PVDF.
  • Casing and Backplate - Cast Steel, Stainless Steel 316. The M.O.C. is selected on the basis of the compatibility and temperature of the fluid handled as per the specific requirement. The pumps are available for high head and capacity.
  • Shaft - Shafts are designed for high torque and power transmission with minimum vibration, deflection and noise level.
  • Sleeve - The sleeves are glided over the shaft, protecting it from corrosive application. Materials: Ceramic, Alloy-20, Hasteloy-c, Hasteloy-B, Monel, Titanium, Silicon Carbide etc.
  • Seals - Mechanical Seals Available with an option of being mounted either externally or internally. The pumps are fitted with specially designed single or double seals with suitable faces alongwith quenching arangement & necessary API Plans if required.
  • Gaskets - To ensure firm sealing, PTFE gaskets are provided at the joints.
  • Casing / Backplate - The wetted areas are lined with compatible polymer. The casing has a rugged foot- mounting which is capable of handling high pressure, piping loads and system pressure. Concentric dove-tail grooves ensure a firm grip between the metal body and lining.
  • Impeller - The impeller has a radial semi- open design, with large contoured flow passages. It is dynamically balanced and is provided with back vanes to reduce axial thrust for improved and elongated product life.

Applications and Industries Served -

  • Chemical processing
  • Drugs and Pharmaceuticals
  • Petrochemicals
  • Effluent Treatment
  • Food processing
  • Fumes scrubbing
  • Agro chemicals
  • Tanneries
  • Perfumeries
  • Detergents and caustics
  • Breweries
  • Acid pickling
  • Dyes and pigments
  • Paper and Pulp industries
  • Photographic processing

New Close Impeller Design For Higher Efficiency

  • Metal armoured protected volute casing design
  • Solid Injection Moulded Volute Casing back plate & impeller
  • Split metal armour design provides strength to volute & ease of replacement
  • Consistent shaft quality provider longer life to mechanical seals & shaft sleeves
  • PTFE envelop Gasket with EPDM incert provider effective sealing even at higher tempreture
  • Pumps are provided with std. Single Machanical Seals & high alumina Ceramic Sleeves. However other option are also available based on fluid pumped, temperature process requirement. Alloy-20 / Monel/ Titanium/Hastalloys B or C
  • In House mould making facility
  • In House injection moulding facility with latest, state of art moulding machines with thermo-state Controller
  • In House component machining & dynamic balancing facility provides consistent Quality
  • Each pump is tested on Electronic state of art test bench & test report is provided.
  • Shorter delevery periods & quick after sales service.
  • PVDF Moulded component thickness
Volute Casing- 8 mm to 14 mm
Back Plates- 13 mm to 16 mm
Impeller- 14 mm to 20 mm

Industries & Application

INDUSTRIAL APPLICATION OF PP PUMP:

PP UPTO 90 DEG C
PVDF UPTO 130 DEG C
PFA ABOVE 130 DEG C

INDUSTRIES SERVED:
Manufacturer of PFA Pumps

MONIBA supports an array of customer specifications with products that are easily acceptable to meet specific process requirements.

Pickling of Mild Steel / Stainless Steel:

Pickling of metals to obtain protection against corrosion and to remove undesired surface layers like oxides (scales, rust) is done by chemical or electrochemical treatment. MONIBA pumps provide unrivalled performance and service life for Hydrochloric or Sulphuric Acid pickling applications.

Sulphuric Acid Plants:

Sulphuric Acid is reckoned among the most basic substances of chemical technology. Sulphuric acid is produced by thermal dissociation of waste acids, by suitable reconditioning of sulphur containing waste gases or by use of sulphur containing minerals. MONIBA pumps are used for diluted, concentrated acids & for SO, 2 SO scrubber applications.

Chloro-Alkali Plants:

Chloro-Alkali electrolysis is one of the most important processes in the chemical industry and provides the basic, chlorine, caustic soda and hydrogen. MONIBA pumps are successfully used for Brine, Sulphuric Acid, Sodium Hypochlorite and Caustic Soda applications

Gas Scrubbers:

Gas scrubbers are designed for applications requiring the removal of various types of contaminants from gas streams. Typical applications for contaminant removal include noxious or toxic fumes from chemical processes. MONIBA pumps have been recommended extensively for fiberglass re-inforced gas scrubbers. Particulate removal from gas streams is accomplished with the use of venture scrubbers where ANTICO pumps have proven track record

Chemicals and Fine Chemicals Processing

Nowadays fine chemicals are increasingly gaining importance. This sector of the chemical industry comprises the pharmaceutical, biochemistry, biotechnology and many other chemical processing industries. MONIBA pumps fitted with the latest shaft sealing technologies have surpassed all customer expectations in handling Volatile Hazardous Air Pollutants.

Electroplating (Metal Finishing) Plants:

Electroplating is the process of using electrical current to reduce captions of a desired material from a solution and coat a conductive object with a thin layer of the material, such as a metal. MONIBA pumps have been deployed extensively to circulate electrolyte containing one or more dissolved metal salts majorly for electroplating of auto components.

Waste Water Treatment
Manufacturer of PFA Pumps in India

Effluent of chemical processing plants treated with caustic thus neutralizing the effluent. Effluent treatment facilities have ion exchange resins to remove ions from aqueous solutions. Hydrochloric acid is used to rinse the captions from the resins thus producing dematerialized water. MONIBA pumps have become a standard equipment for acid, caustic & DM water applications amongst water treatment industry.

We are also a renowned Liquid Ammonia Pumps Manufacturer. To get the details, connect with us.

Advantages

  • Volute & Impellers are injection Molding PVDF / PFA / FEP material with smooth hydraulic passage.
  • Shaft are available with sleeves of different materials compatible with the liquid handled
  • Pumps are avaible with externally mounted balanced mech seal or teflon gland packing or internal mech seal with elastomer bellows
  • Less space required & easy to handle
  • Excellent mechanical properies over a wide range of temprature (23oC to 130oC)
  • Abrasion resistance comparable to that of polyamide, and relatively low coefficient of friction.
  • Smooth running and long service life of the mechanical seal.
  • Epoxy paint to protect from external protection of pump.
  • External cooling arrangement provided in pump for enhancement of mechanical seal life.

Specifications

This parameters depend on size of pump

Capacity Upto 400m3/hr
Head Upto 100 meters
Power Upto 55 HP
Max liquid temp. 220oC
Max working pressure 7Kg/cm2
RPM 2900/1440
Solid % Max 30%
Solid Size Max 3mm

Perforamance


 MONIBA ANAND ELECTRICALS PVT LTD
Sr No. Model RPM Graph no. Q= m3/hr &  H=meter Shut off head in meter
1 MK-20 2900   Q 0 5 6.5 8.5 8.7 11 13 21
        H 21 18 16 14 12 9 6
2 MK-25 2900   Q 0 2.8 8.7 14.5 17 19 20 27
        H 27 25 20 15 12 10 8
3 MK-40 2900   Q 0 12 21 30 37 42 13 35
        H 35 30 25 20 18 15 44
4 MK-45 2900   Q 0 12 25 35 44 50 55 52
        H 52 48 42 36 30 24 18
5 MK-50 2900   Q 0 24 41 54 66 74 76 34
        H 34 30 25 20 15 12 11
6 MK-55 1440   Q 0 30 38 43 50 57 60 36
        H 36 30 27 25 20 18 16
7 MK-60 2900   Q 0 30 40 60 74 85 95 53
        H 53 50 48 42 36 30 24
8 MK-70 1440   Q 0 14 33 42 49 57 70 31
        H 31 30 27 25 23 20 15
9 MK-80 2900   Q 0 48 62 100 126 148 162 52
        H 52 50 48 42 36 30 24
10 MK-90 1440   Q 0 56 52 96 114 120 130 28
        H 28 25 23 20 18 15 13
11 MK-95 1440   Q 0 96 130 158 162 180 190 46
        H 46 40 35 30 28 25 23
12 MK-150 1440   Q 0 40 100 122 140 170 182 52
        H 52 50 45 42 40 35 32

Note* - Higher capacity pumps available on request.

PVDF / PFA / FEP Pump Selection

Chemical Formula PVDF
Acetate Solvents CH3COOR A
Acetaldehyde (Ethanal) CH3CHO A 150°F
Acetamide (Acetic Acid Amide)  CH3CONH2 A 140°F
Acetic Acid _ Glacial CH3COOH A 120°F
Acetic Anhydride (Acetic Oxide) (CH3CO)2O B 70°F
Acetonitrile (Methyl Cyanide) CH3CN A
Acetophenone (Phenyl Methyl Ketone)  C6H5COCH3 A
Acetyl Chloride CH3COCl A
Acetylene (Ethyne) HC=CH A
Acrylonitrile (Vinyl Cyanide) CH2=CHCN A
Adipic Acid (1,4-Butanedicarboxylic Acid)  HOOC(CH2)4 (COOH ) A
Alcohols R-OH A
Allyl Alcohol (2-Propen-1-ol) CH2CHCH2OH A
Allyl Chloride (3-Chloropropene) CH2=CHCH2CI A
Alum (Aluminum Potassium Sulfate Dodecahydrate)  KAI(SO4)2  &1&2H2O A
Aluminum Ammonium Sulfate (Alum)  AINH4(SO4)2 A
Aluminum Bromide AlBr3 A
Aluminum Chloride AlCl3 A
Aluminum Fluoride AlF3 A
Aluminum Hydroxide (Alumina Trihydrate)  AI(OH)3 A
Aluminum Nitrate Al(NO3)3 &9H2O A
Aluminum Potassium Sulfate (Potash Alum)  KAl(SO4)2 A
Aluminum Sulfate (Cake Alum)  Al2(SO4)3 A
Ammonia Anhydrous, Liquid NH3 A
Ammonium Bifluoride _ 10% NH4HF2 A
Ammonium Carbonate (NH4)2CO3 A
Ammonium Chloride (Sal Ammoniac)  NH4Cl A
Ammonium Fluoride NH4F A
Ammonium Hydroxide (Aqua Ammonia)  NH4OH A
Ammonium Metaphosphate   A
Ammonium Nitrate NH4NO3 A
Ammonium Nitrite NH4NO2 A
Ammonium Persulfate (NH4)2S2O8 A
Ammonium Phosphate, Di-Basic (NH4)2HPO4 A
Ammonium Phosphate, Monobasic (NH4)H2PO4 A
Ammonium Phosphate, Tri-Basic (NH4)3PO4&3H2O A
Ammonium Sulfate (NH4)2SO4 A
Amyl (1-Pentanol) C4H9CH2OH A
Amyl Acetate (Banana Oil) CH3CO2C5H11 A 120°F
Amyl Alcohol (Pentyl Alcohol) CH3(CH2)4OH A
Amyl Chloride (Chloropentane) CH3(CH2)4CI A
Aniline (Aniline Oil) (Amino Benzene)  C6H5NH2 A
Aniline Hydrochloride C6H5NH2HCI A
Animal Fats & Oils   A
Antimony Trichloride SbCI3 A
Aqua Regia (Nitric & Hydrochloric Acid)    A
Arsenic Acid AsH3O4 A
Asphalt Hydrocarbons A
Barium Carbonate BaCO3 A
Barium Chloride Dihydrate BaCl2 &2H2O A
Barium Hydroxide (Barium Hydrate)  Ba(OH)2 A
Barium Nitrate Ba(NO3)2 A
Barium Sulfate (Blanc Fixe) BaSO4 A
Barium Sulfide BaS A
Beer Water, carbonate A 175°F
Beet Sugar Liquors (Sucrose)   A
Benzaldehyde C6H5CHO A
Benzene (Benzol) C6H6 B
Benzene Sulfonic Acid C6H5SO3H B 100°F
Benzoic Acid (Benzene Carboxylic Acid)  C6H5COOH A
Benzol (Benzene) C6H6 B
Benzol (Benzene) C6H6 B
Benzoyl Chloride C6H5COCl A
Benzyl (Phenylcarbinol) C6H5CH2OH A
Benzyl Alcohol C6H5CH2OH A
Benzyl Chloride (Chlorotoluene) C6H5CH2Cl A
Borax (Sodium Borate) B4Na2O7 A
Boric Acid (Boracic Acid) H3BO3 A
Brine (Sodium Chloride) Salt water A
Bromine _ Anhydrous Br2 A 150°F
Bromine Water   A
Butadiene C4H6 A
Butane (LPG) (Butyl Hydride) C4H10 A
Buttermilk Fats, water A
Butyl (Butanol) C3H7CH2OH A
Butyl Acetate CH3CO2(CH2)3CH3 A 100°F
Butyl Alcohol (Butanol) CH3(CH2)3OH A
Butyl Amine (Aminobutane) CH3(CH2)2CH2NH2 B 70°F
Butyl Bromide CH3(CH2)2CH2Br A
Butyl Cellosolve HOCH2CH2OC4H9 B
Butyl Chloride (Chlorobutane) CH3(CH2)3CL A
Butyl Ether (Dibutyl Ether) (CH3(CH2)3)2O A 100°F
Butyl Stearate CH3(CH2)16   CO2(CH2)3CH3 A
Butylene (Butene) C4H8 A
Butyric Acid CH3(CH2)2CO2H A
Calcium Bisulfite Ca(HSO3)2 A
Calcium Carbonate (Chalk) CaCO3 A
Calcium Chlorate Ca(ClO3)2 A
Calcium Chloride (Brine) CaCl2 &6H2O A
Calcium Hydroxide (Slaked Lime) Ca(OH)2 A
Calcium Hypochlorite 20% (Calcium Oxichloride)  Ca(CIO)2 A
Calcium Nitrate Ca(NO3)2 A
Calcium Sulfate (Gypsum) CaSO4 A
Calcium Sulfide CaS A
Cane Sugar Liquors Sucrose, water A
Caprylic Acid (Octanoic Acid) CH3(CH2)6  COOH A
Carbolic Acid (see Phenol) C6H5OH A 150°F
Carbon Dioxide (Carbonic Acid Gas) CO2 A
Carbon Disulfide (Carbon Bisulfide)  CS2 A
Carbon Monoxide CO A
Carbon Tetrachloride (Tetrachloromethane)  CCL4 A
Carbonated Beverages CO2/H2O A
Carbonic Acid (liquid) H2CO3 A
Cellosolve (Glycol Ethers) HOCH2CH2OR A
Chlorinated Water   A
Chlorine Dioxide CIO2 A
Chlorine, Anhydrous Liquid CI2 A
Chlorine, Dry CL2 A
Chlorine, Wet CI2/H2O A
Chloroacetic Acid (Monochloroacetic Acid)  CICH2COOH A
Chlorobenzene (Monochlorobenzene)  C6H5CI A 150°F
Chloroform CHCI3 A
Chromic Acid _ 25%-50% H2CrO4 A 120°F
Chromic Acid _ Over 50% H2CrO4 A 120°F
Chromic Acid _ To 25% H2CrO4 A 120°F
Citric Acid C6H8O7 H2O A 250°F
Coke Oven Gas H2(&5&3%), CH4 (&2&6%), N2 (&1&1%), CO (&7%) hydrocarbons(&3%) A
Copper Acetate Cu(c2H3O2)2  CuO  &6H2O A
Copper Chloride CuCl2&2H2O A
Copper Cyanide CuCN A
Copper Nitrate Hexahydrate Cu(NO3)2&6H2O A
Copper Sulfate (Blue Copperas) CuSO4&5H2O A
Corn Oil (Maize oil) Glycerides of fatty acids A
Cotton Seed Oil   A
Cresylic Acid (Cresol) C8H10O2 A 150°F
Cyclohexane C6H12 A
Cyclohexanol C6H11OH A 150°F
Cyclohexanone C6H10O A
Decane CH3(CH2)8CH3 A
Denatured Alcohol Ethanol and denaturant A
Dextrose C6H12O6 A
Diacetone (Tyranton) (CH3)2C(OH) CH2COCH3  A
Dibutyl Amine (C4H9)2NH B 70°F
Diesel Oil (Fuel ASTM #2) Hydrocarbons A
Diethyl Amine (CH3CH2)2NH A
Diethyl Ether (Ether) (CH3CH2)2O A
Diethyl Sebecate C14H26O4 A 120°F
Diisobutylene [HC=C(CH3)2]2 A
Dimethyl Phthalate C6H4(CO2CH3)2 A 70°F
Diphenyl Oxides (Phenyl Ether)  C6H5OC6H5 A
Dipropylene Glycol (C3H6OH)2O A
Epsom Salts  (Magnesium Sulfate) MgSO4  &7H2O A
Ethyl (Ethanol) CH3CH2OH A
Ethyl Acetate CH3COOC  H2CH3 A
Ethyl Acetoacetate (Acetoacetic Ester)  CH3COCH2 COOCH2CH3  A 70°F
Ethyl Acrylate CH2CHCO2CH2CH3 B 70°F
Ethyl Alcohol (Ethanol) CH3CH2OH A
Ethyl Benzene CH3CH2C6H5 A
Ethyl Chloride  (Chloroethane) C2H5CI A
Ethylene Chlorohydrin CICH2CH2OH A 70°F
Ethylene Diamine (CH2)2(NH2)2 B
Ethylene Dibromide (Ethylene Bromide)  Br(CH2)2Br A
Ethylene Dichloride (Dutch Oil)  CI(CH2)2CI A
Ethylene Glycol (Ethylene Alcohol, Glycol)  (CH2OH)2 A
Ethylene Oxide (CH2)2O A
Fatty Acids CnH2n+1COOH A
Ferric Chloride FeCI3 A
Ferric Nitrate Fe(NO3)3 A
Ferric Sulfate Fe2(SO4)3 A
Ferrous Chloride FeCI2 A
Ferrous Sulfate FeSO4 A
Fluoboric Acid HBF4 A
Fluorine (Liquid) F2 A 70°F
Fluosilicic Acid (Sand Acid) H2SiF6 A
Formaldehyde (Formalin) HCHO A 120°F
Formic Acid HCOOH A
Freon 11 (Trichlorofluoromethane) CCI3F A
Freon 113 (Trichlorotrifluoroethane) (TF) CI3CCF3 A
Freon 114 (Dichlorotetrafluoroethane) C2CI2F4 A
Freon 114B2 (Dibromotetrafluoroethane)  C2Br2F4 A
Freon 12 (Dichlorodifluoromethane) CI2CF2 A
Freon 21 (Dichlorofluoromethane) FCHCI2 A
Fruit Juices Water, sucrose A
Fuel Oils (ASTM #1 thru #9) Hydrocarbons A
Furfural (Ant Oil) C5H4O2 B 120°F
Furfuryl Alcohol C5H6O2 B 100°F
Gallic Acid C6H(OH)3 COOH A 70°F
Gasoline (Petrol) Hydrocarbons A
Gasoline (Unleaded) C4 TO C12 hydrocarbons A
Gelatin Water soluble proteins A
Glucose (Corn Syrup) C6H12O6 A
Glycerol (Glycerine) C3H8O3 A
Glycolic Acid HOCH2COOH A
Glycols   A
Grape Juice Water, sucrose A
Heptane C7H16 A
Hexyl (1-Hexanol) C5H11CH2OH A
Hexyl Alcohol (1-Hexanol) C6H13OH A
Hydrobromic Acid HBr A
Hydrochloric Acid 10% (Muratic) HCI A
Hydrochloric Acid 20% (Muratic) HCI A
Hydrochloric Acid 30% (Conc.) HCI A
Hydrocyanic Acid (Formonitrile) HCN A
Hydrofluoric Acid (Conc.) Cold HF A
Hydrogen Fluoride _ Anhydrous HF A
Hydrogen Peroxide _ 10% H2O2 A
Hydrogen Peroxide _ 3% H2O2 A
Hydrogen Peroxide _ 30% H2O2 A
Hydrogen Sulfide (Wet) H2S A
Hydroquinone C6H4(OH)2 A
Hypochlorous Acid HCIO A
Iodine I2 A 150°F
Iodoform CHI3 A
Isobutyl (2-Methyl-1-Propanol) C3H7CH2OH A
Isobutyl Alcohol (Isobutanol) (CH3)2 CHCH2OH  A
Isooctane (Trimethylpentane)  C8H18 A
Isopropyl (2-Propanol) H3CCH(OH)CH3 A 150°F
Isopropyl Alcohol (Isopropanol)  CH3CH(OH)CH3 A
Isopropyl Ether (CH3)2CHOCH(CH3)2 A 170°F
Jet Fuels (JP1 to JP6) (ASTM-A, A1 & B)    A
Kerosine (Kerosene) Hydrocarbons A
Lactic Acid CH3CHOHCOOH A
Lard (Lard Oil) Olein, stearin A
Lead Acetate (Sugar of Lead)  Pb(CH3CO2)2 A
Lead Chloride PbCI2 A
Lead Nitrate Pb(NO3)2 A
Linoleic Acid C18H32O2 A
Linseed Oil (Flaxseed Oil)  Glycerides A
Lithium Bromide LiBrH2O A
Lubricating Oils (Petroleum)  Hydrocarbons A
Lye (Potassium Hydroxide) KOH A 150°F
Magnesium Carbonate MgCO3 A
Magnesium Chloride MgCI2O A
Magnesium Hydroxide (Milk of Magnesia)  Mg(OH)2 A
Magnesium Nitrate Mg(NO3)2 &6H2O A
Magnesium Sulfate (Epsom Salts)  MgSO4&7H2O A
Maleic Acid (CHCOOH)2 A
Mercuric Chloride HgCI2 A
Mercuric Cyanide Hg(CN)2 A
Mercurous Nitrate Hg(NO3)2 &2H2O A
Mercury Hg A
Methane CH4 A
Methyl (Methanol) CH3OH A
Methyl Acrylate CH2CHCO2CH3 A 70°F
Methyl Alcohol (Methanol) CH3OH A
Methyl Bromide (Bromo Methane)  CH3Br A
Methyl Cellosolve CH3OCH2 CH2OH A
Methyl Chloride CH3CI A
Methyl Isobutyl Ketone (Hexone)  CH3COCH2CH (CH3)2  A 70°F
Methyl Isopropyl Ketone CH3COCH(CH3)2 A 70°F
Methyl Methacrylate CH2C(CH3)CO2CH3 A 70°F
Methylene Bromide CH2Br2 A
Methylene Chloride CH2CI2 B 100°F
Milk   A
Mineral Oil (Petroleum) Hydrocarbons A
Mixed Acids (Sulfuric & Nitric)  H2SO4, HNO3 A
Molasses   A
Monochlorobenzene C6H5CI A 100°F
N,N-Dimethyl Formamide (DMF) HCON(CH3)2 A 120°F
N,N-Dimethylaniline C6H5N(CH3)2 A
Naphtha (Petroleum Spirits) (Thinner)  Petroleum fractions  A
Naphthalene (Tar Camphor) C10H8 A
n-Hexane C6H14 A
Nickel Acetate Ni(CH3CO2)2 A
Nickel Chloride NiCI2 A
Nickel Nitrate Ni(NO3)2&6H2O A
Nickel Sulfate NiSO4 A
Nitric Acid (Conc.) HNO3 A 120°F
Nitric Acid _ 10% HNO3 A
Nitric Acid _ 25% HNO3 A
Nitric Acid _ 35% HNO3 A
Nitric Acid _ 50% HNO3 A
Nitric Acid _ 70% HNO3 A
Nitrobenzene C6H5NO2 A 70°F
Nitroethane C2H5NO2 A 70°F
Nitromethane CH3NO2 A 120°F
n-Octane C8H18 A
n-Propyl Acetate CH3COO(CH2)2CH3 A
o-Chlorophenol C6H5CIO A
o-Dichlorobenzene C6H4CI2 A 150°F
Oleic Acid (Red Oil) C18H34O2 A
Olive Oil Mixed glycerides of acids A
Oxalic Acid (COOH)2 A 120°F
Ozone O3 A
Palmitic Acid CH3(CH2)14  COOH A
Peanut Oil Glycerides of fatty acids A
Perchloric Acid HCIO4 A
Perchloroethylene (Tetrachloroethylene)  C2CI4 A
Petroleum (Crude Oil) (Sour)  Hydrocarbons A
Phenol (Carbolic Acid) C6H5OH A 100°F
Phenyl Hydrazine C6H5NHNH2 A 120°F
Phosphoric Acid (Conc.) H3PO4 A
Phosphoric Acid _ 10% H3PO4 A
Phosphoric Acid _ 20% H3PO4 A
Phosphoric Acid _ 50% H3PO4 A
Phosphorus Trichloride PCI3 A
Photographic Developer   A
Picric Acid (Carbazotic Acid) (NO2)3 C6H2OH A
Plating Solution _ Cadmium   B
Polyvinyl Acetate Emulsion PVac + H2O A
Potassium Acetate CH3CO2K A
Potassium Bicarbonate KHCO3 A
Potassium Bisulfate KHSO4 A
Potassium Bromide KBr A
Potassium Carbonate (Potash) K2CO3 A
Potassium Chlorate KCIO3 A
Potassium Chloride KCI A
Potassium Chromate K2CrO4 A
Potassium Copper Cyanide K3[Cu(CN)4] A
Potassium Cyanide KCN A
Potassium Dichromate K2Cr2O7 A
Potassium Hydroxide (Caustic Potash) (Lye)  KOH A 150°F
Potassium Iodide KI A
Potassium Nitrate (Saltpeter)  KNO3 A
Potassium Permanganate (Purple Salt)  KMnO4 A
Potassium Sulfate K2SO4 A
Potassium Sulfide K2S A
Potassium Sulfite K2SO32H2O A
Propane (LPG) C3H8 A
Propyl (Propanol) C2H5CH2OH A 120°F
Propyl Alcohol (1-Propanol) CH3CH2CH2OH A
Propylene Glycol (Methyl Glycol)  C3H6(OH)2 A
Pyroligneous Acid (Wood Vinegar)   A
Sal Ammoniac (Ammonium Chloride)  NH4CI A
Salicylic Acid   A
Salt Water (Brine) NaCl/H2O A
Sea Water (Brine)    A
Sewage   A
Silicone Oils (Versilube etc.)  [(CH3)2SiO2)]n A
Silver Cyanide AgCN A
Silver Nitrate AgNO3 A
Soap Solutions Salt of fatty acid in H2O A
Sodium Acetate CH3COONa A
Sodium Aluminate Na2Al2O4 A
Sodium Bicarbonate (Baking Soda)  NaHCO3 A
Sodium Bisulfite (Cream of Tartar)  NaHSO3 A
Sodium Bisulfite (Niter Cake)  NaHSO4 A
Sodium Borate Na2B4O7 A
Sodium Bromide NaBr A
Sodium Chlorate NaCIO3 A
Sodium Chloride (Table Salt)  NaCI A
Sodium Chromate Na2CrO4 A
Sodium Cyanide NaCN A
Sodium Dichromate (Sodium Bichromate)  Na2Cr2O7&2H2O A
Sodium Fluoride NaF A
Sodium Hydroxide (Caustic Soda) (Lye)  NaOH A
Sodium Hypochlorite NaCIO A
Sodium Metasilicate Na2SiO3 A
Sodium Nitrate (Chile Saltpeter)  NaNO3 A
Sodium Nitrite NaNO2 A
Sodium Perborate NaBO3 A
Sodium Peroxide (Sodium Dioxide)  Na2O2 A
Sodium Phosphate (Tribasic) (TSP)  Na3PO4 A
Sodium Silicates (Water Glass)  Na2O SiO2 A
Sodium Sulfate (Salt Cake) (Thenardite)  Na2SO4 A
Sodium Sulfide (Pentahydrate)  Na2S &5H2O A
Sodium Sulfite Na2SO3 A
Sodium Tetraborate Na2B4O7 &1&0H2O A
Sodium Thiosulfate (Antichlor)  Na2S2O3 A
Stannic Chloride (Tin Chloride) SnCI4 A
Stannous Chloride (Tin Chloride)  SnCI2 A
Stearic Acid CH3(CH2)16CO2H A
Styrene (Vinylbenzene) C6H5CHCH2 A
Sulfur S A
Sulfur Chloride S2CI2 A
Sulfur Dioxide SO2 A
Sulfuric Acid (Conc.) H2SO4 A 120°F
Sulfuric Acid 10% H2SO4 A
Sulfuric Acid 25% H2SO4 A 150°F
Sulfuric Acid 50% H2SO4 A 150°F
Sulfuric Acid 60% H2SO4 A 150°F
Sulfuric Acid 75% H2SO4 A 150°F
Sulfuric Acid 95% H2SO4 A 120°F
Sulfurous Acid H2SO3 A
Tall Oil (Liquid Rosin) Rosin acids A
Tannic Acid C76H52O46 A
Tartaric Acid C4H6O6 A
Terpineol (Terpilenol) C10H18O B 120°F
Tetrachloroethane (Acetylene Tetrachloride)  (CI2HC)2 A
Tetrachloroethylene CI2C = CCI2 A
Tetraethyl Lead Pb(C2H5)4 A
Tetrahydrofuran (THF) C4H8O B 70°F
Titanium Tetrachloride TiCI4 B
Toluene (Toluol) C7H8 A
Tomato Pulp & Juice   A
Triallyl Phosphate P(OC3H5)3 A
Tributyl Phosphate (TBP) (C4H9)3PO4 A 100°F
Trichloroacetic Acid (TCA) CCI3COOH B
Trichloroethane C2H3CI3 A
Trichloroethylene (Ex-Tri) (Hi-Tri) C2HCI3 A
Triethyl Amine (CH3CH2)3N A 120°F
Turpentine C10H16 A
Unsymmetrical Dimethyl Hydrazine (UDMN)  H2NN(CH3)2 A
Urea (Carbamide) CO(NH2)2 A
Urine   A
Varnish (Oil, gum resins, oil of turpentine)   A
Vinegar Dilute acetic acid A
Vinyl Acetate CH3COOCHCH2 A
Vinyl Chloride (Chloroethylene)  CH2CHCI B
Water, Distilled (Also Deionized) H2O A
Water, Fresh H2O A
Whiskey Ethanol, esters, acids A
White Sulfate Liquor   A
Wines   A
Xylene (Xylol) C6H4(CH3)2 A
Zinc Acetate Zn(C2H3O2)2 A
Zinc Chloride ZnCI2 A
Zinc Sulfate ZnSO4 A
  HCCIF2 A

Accessories

  • Base Frame
  • Coupling
  • Coupling Guard
  • Foundation bolt
  • Strainer
